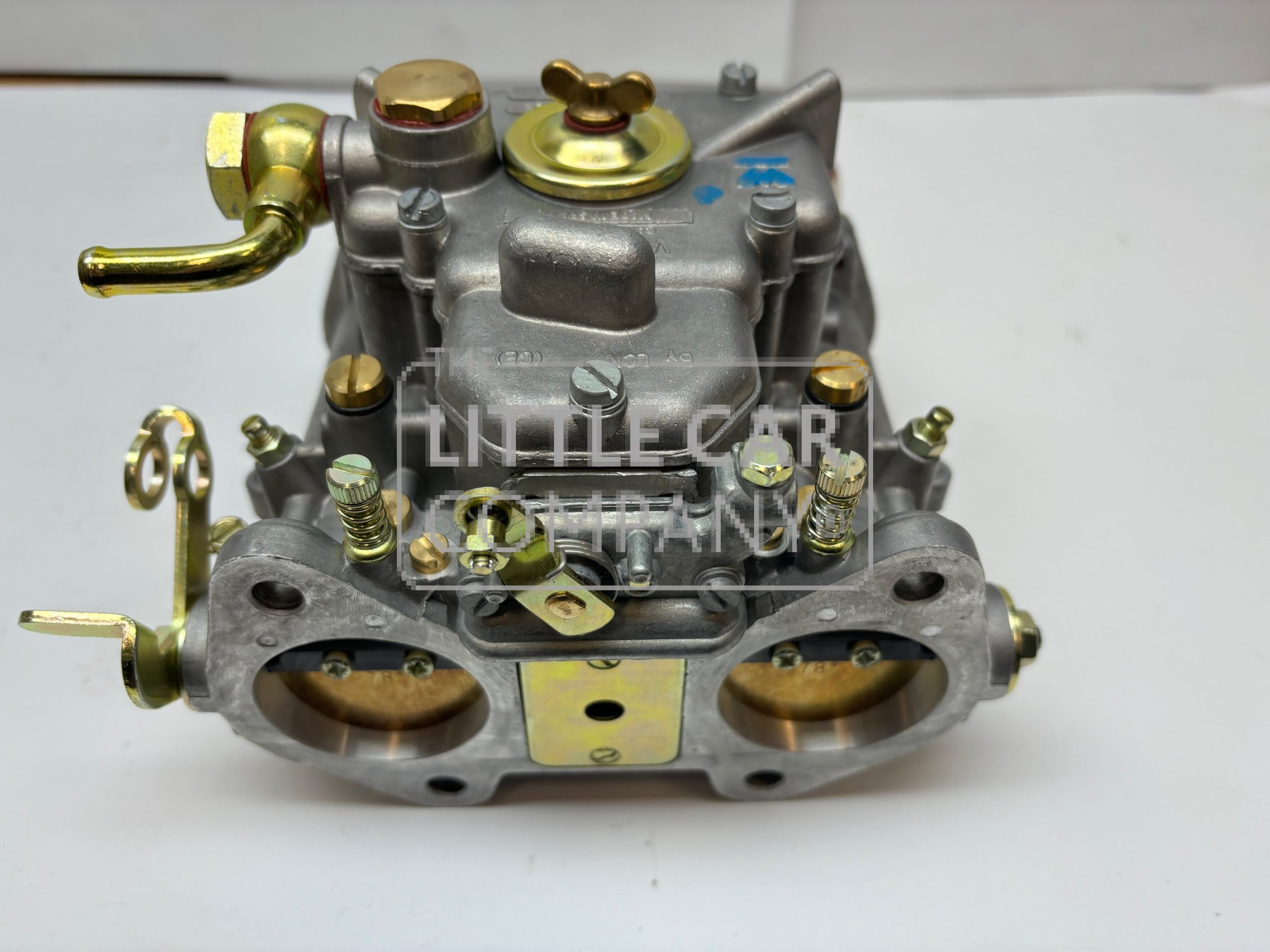

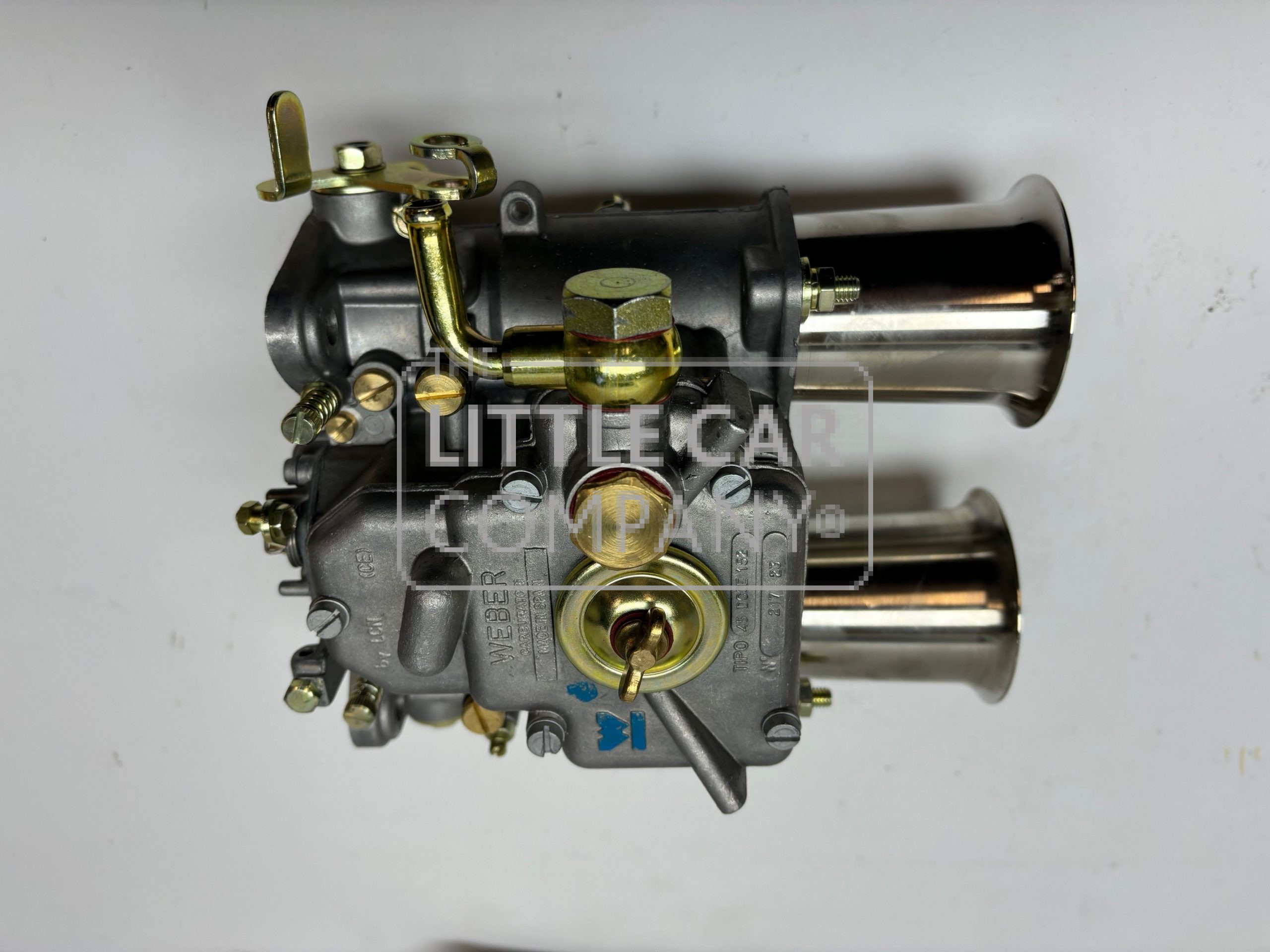

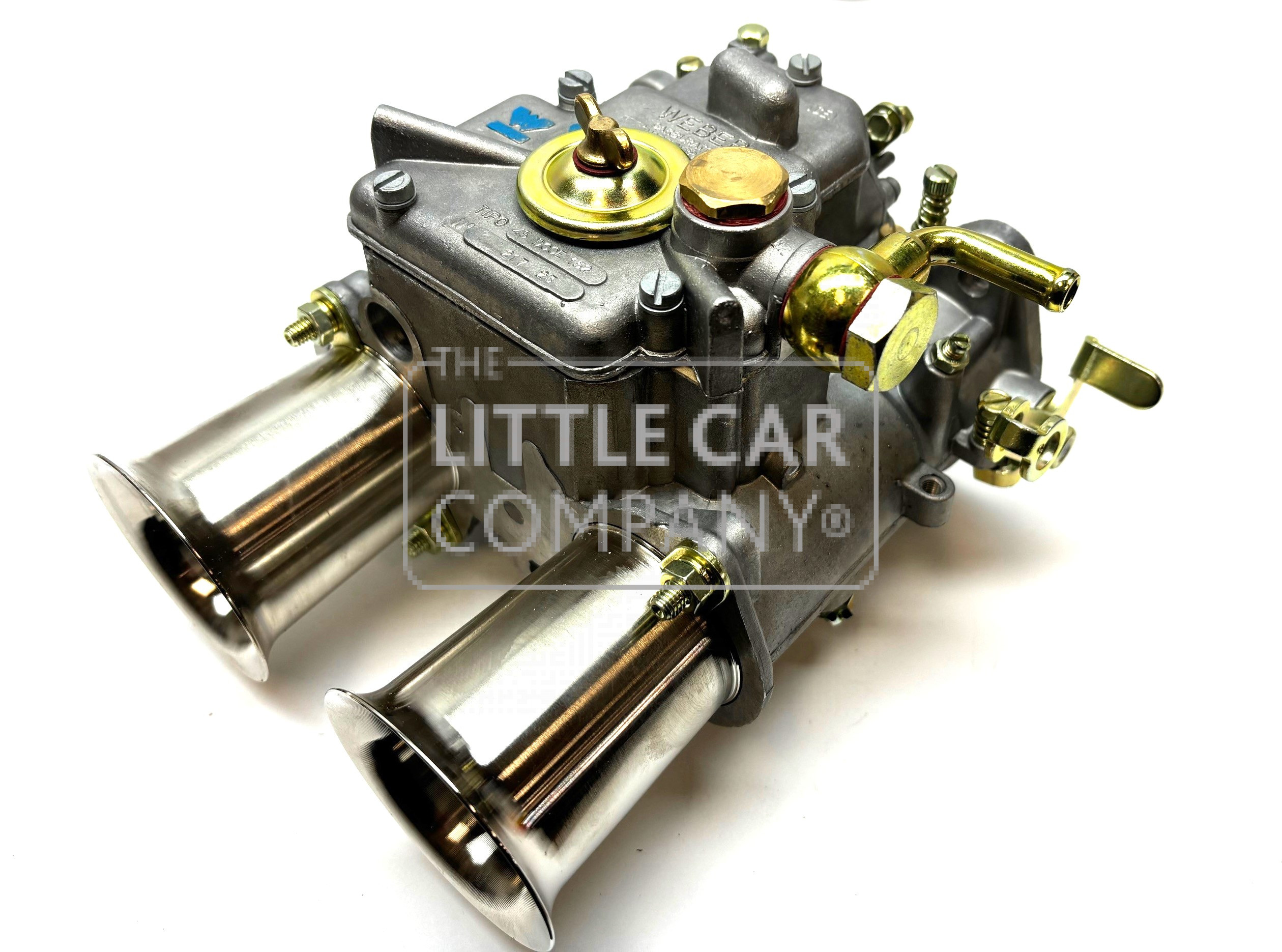

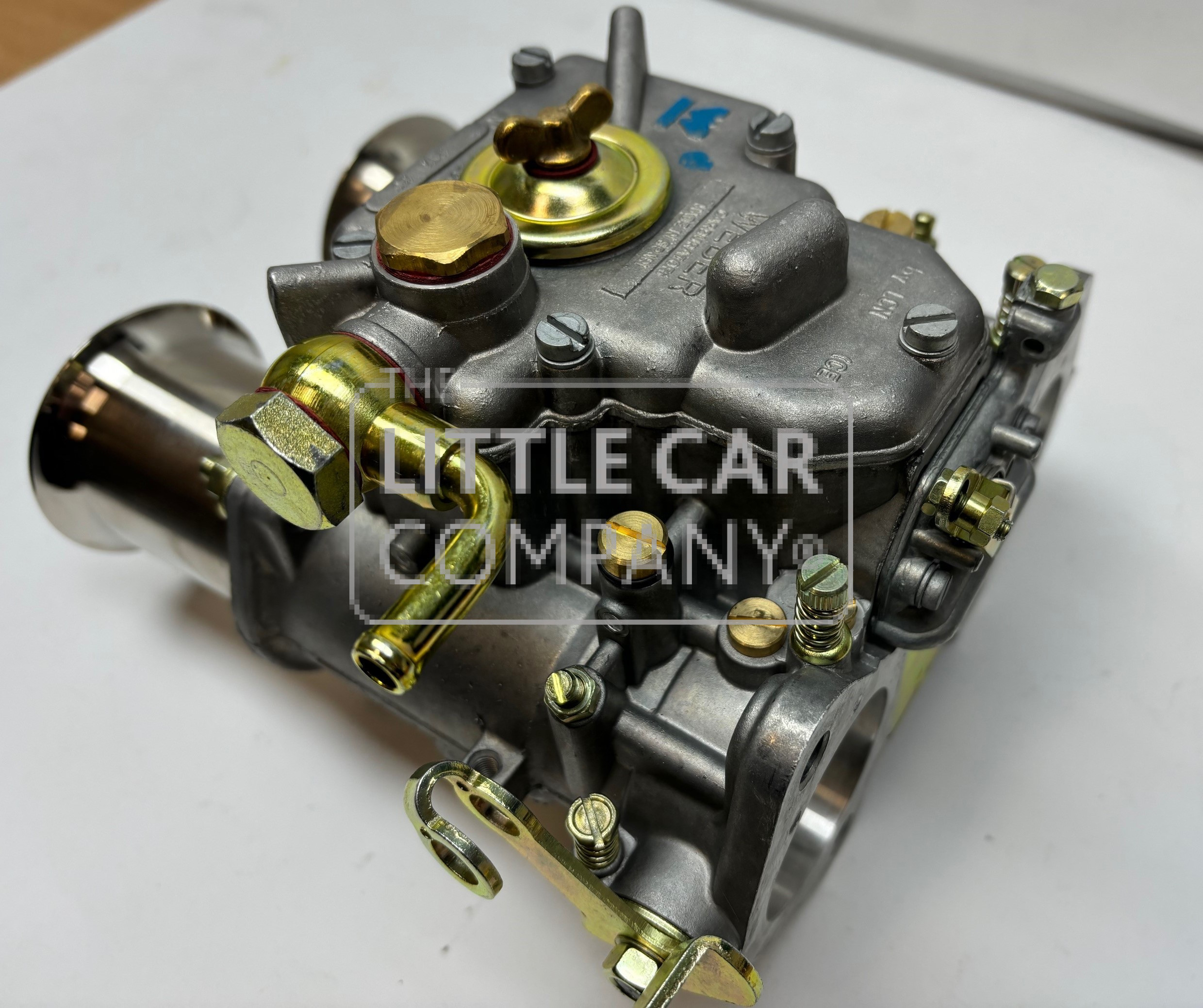

Weber 45DCOE Carburateur

Genuine Weber 45DCOE Carb,

calibration from the factory is as below

Choke 36

Throttle Plate Angle 78 degrees

Auxiliary Venturi 4.5

Needle Valve 200

Main Jet 145 Pump Jet 45

Air Corrector Jet 155

Pump Spill 40

Emulsion Tube F16

Float Level 12 mm

Idle Jet 55 F8

Starter Jet Fuel 85/F9

Idle Mixture Orifice/Bush 100

Starter Jet Air 150

Progression Holes 120/100/80
